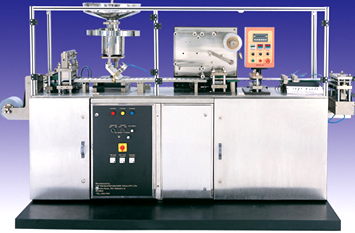

cold Formed (ALu-ALu) |
|
|
|
|
|
|
|
 |
|
SALIENT
FEATURES : |
-
Cam-driven independent
stations.
-
Full function PLC.
-
User friendly MMI with recipe settings.
-
Separate punch, perforation/embossing.
-
Listing of alarms.
-
Automatic feeding device.
-
S.S. Cladding confirming to GMP standards.
-
Quick change over.
|
| |
|
|
| |
|
MACHINE SPEED |
- 30 Cycles /
Min for Cold formed blisters.
- 40 Cycles / Min for
thermoformed blisters (for a typical pack size)
|
|
OPTIONAL FEATURES |
- Embossing
station / Perforation
- Non Fill
detection
- Printing
station
- Acrylic
machine guards / polycarbonate guards.
- Print
Registration Control
|
| |
|
TECHNICAL
SPECIFICATIONS |
|
Packing Material |
Format Range |
BASE FILM
PVC,PVC WITH PVDC PP, TRI-LAMINATED ALU. |
Max Format
Area.............140mm x 98mm
Max Base Foil Width....... 148mm |
LIDDING FOIL
HEAT SEALABLE
ALUMINIMUM OR PAPER |
Max Lidding Foil
Width......144mm
Max Forming Depth........... 12mm |
|
| |
| |
|
UTILITIES |
|
|
AIR CONSUMPTION |
180 Litre/Min at 6 Bar
Pressure |
|
COOLING WATER |
120 Litre/Hour at 14º C |
|
REQUIREMENT |
(Base Film Dependent) |
|
POWER |
Peak Power 7 KW. |
|
WEIGHT |
800 KG. (Approximately) |
|
